Infection Spread Shader System Godot 4.5
A downloadable asset pack

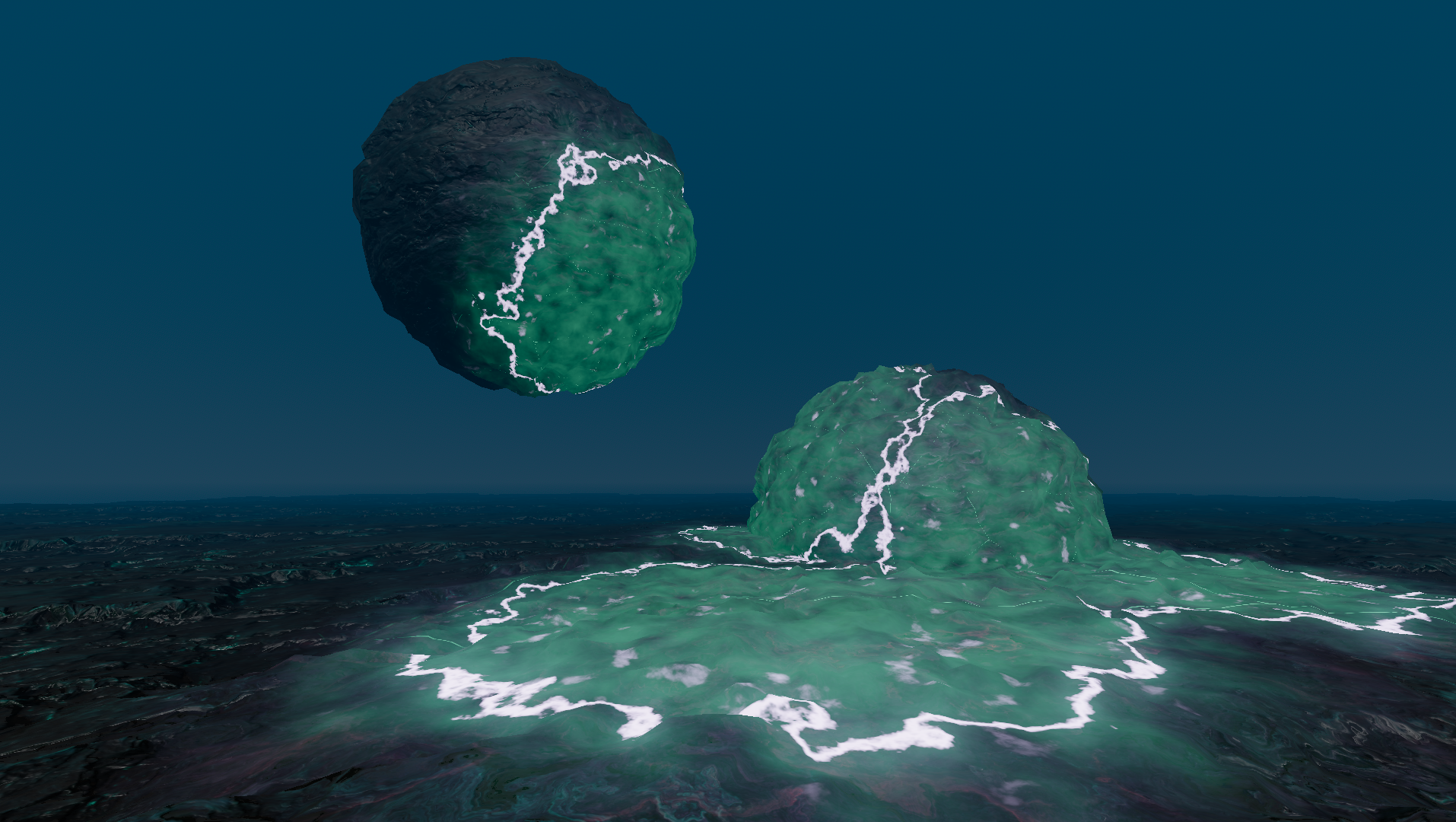

A complete shader system that lets you shoot projectiles to infect surfaces. Infection spreads organically from impact points with glowing veins, pulsing animation, and realistic merging.
Features
Organic spreading - Grows from hit points with animated veins and pustules
Smooth merging - Multiple infections blend into one unified blob
Full PBR support - Works with albedo, normal, roughness, AO, displacement, and emission textures
Customizable appearance - Use procedural or custom textures for both healthy and infected states
Performance optimized - Distance culling and early exit
FPS controller included - Ready-to-use player with shooting mechanics
How to Use
1. Setup InfectionManager (One-time)
1. Add `InfectionManager.gd` to your project
2. Go to **Project > Project Settings > Autoload**
3. Add `InfectionManager.gd` as autoload named "InfectionManager"
2. Make an Object Infectable
**Scene Structure:**
```
YourObject (StaticBody3D or RigidBody3D)
├── MeshInstance3D (with infection shader material)
├── CollisionShape3D
└── Script: InfectableObject.gd
1. Create your 3D object (floor, wall, sphere, etc.)
2. Apply `infection_spread.gdshader` to its material
3. Attach `InfectableObject.gd` script
4. In the script's `_ready()`, add this line:
mesh_instance.set_surface_override_material(0, material.duplicate())
3. Create Projectiles
1. Create a **RigidBody3D** scene
2. Add **MeshInstance3D** (sphere) with `infection_projectile.gdshader`
3. Add **CollisionShape3D**
4. Attach `InfectionProjectile.gd` script
5. Save scene as `infection_projectile.tscn`
4. Adjust Settings
**In Material Inspector:**
- `infection_spread_distance` - How far infection spreads (try 10-30)
- `max_infection_points` - Max points per object (50-100 recommended)
- `corruption_color` - Change infection color
- `healthy_uv_scale` / `corrupted_uv_scale` - Texture tiling
**That's it!** Shoot objects to infect them and watch the infection spread.
---
What's Included
- `infection_spread.gdshader` - Main infection shader
- `infection_projectile.gdshader` - Projectile shader
- `InfectionManager.gd` - Manages infection state
- `InfectableObject.gd` - Makes objects infectable
- `InfectionProjectile.gd` - Projectile behavior
- `Player.gd` - FPS controller example
---
Quick Tips
- **Change colors:** Adjust `corruption_color` and `infection_edge_color`
- **Faster spread:** Lower `infection_spread_distance` value
- **More detail:** Increase `vein_density` and `pustule_density`
- **Better performance:** Lower `max_infection_points` to 25-50
- **Custom textures:** Enable `use_corrupted_textures` and assign texture maps
If you have any request or suggestions for making it better, please let me know 🙂
Purchase
In order to download this asset pack you must purchase it at or above the minimum price of $6 USD. You will get access to the following files:
